pi-remote-control

A pi extension that exposes running sessions over WebSocket — used today as a browser-based remote control, and the foundation for a native iOS app currently in development.

Disclaimer

Personal use and research only. Provided as-is, no liability for damage, misuse, or operational consequences. See Security notes.

---

Current state: browser client

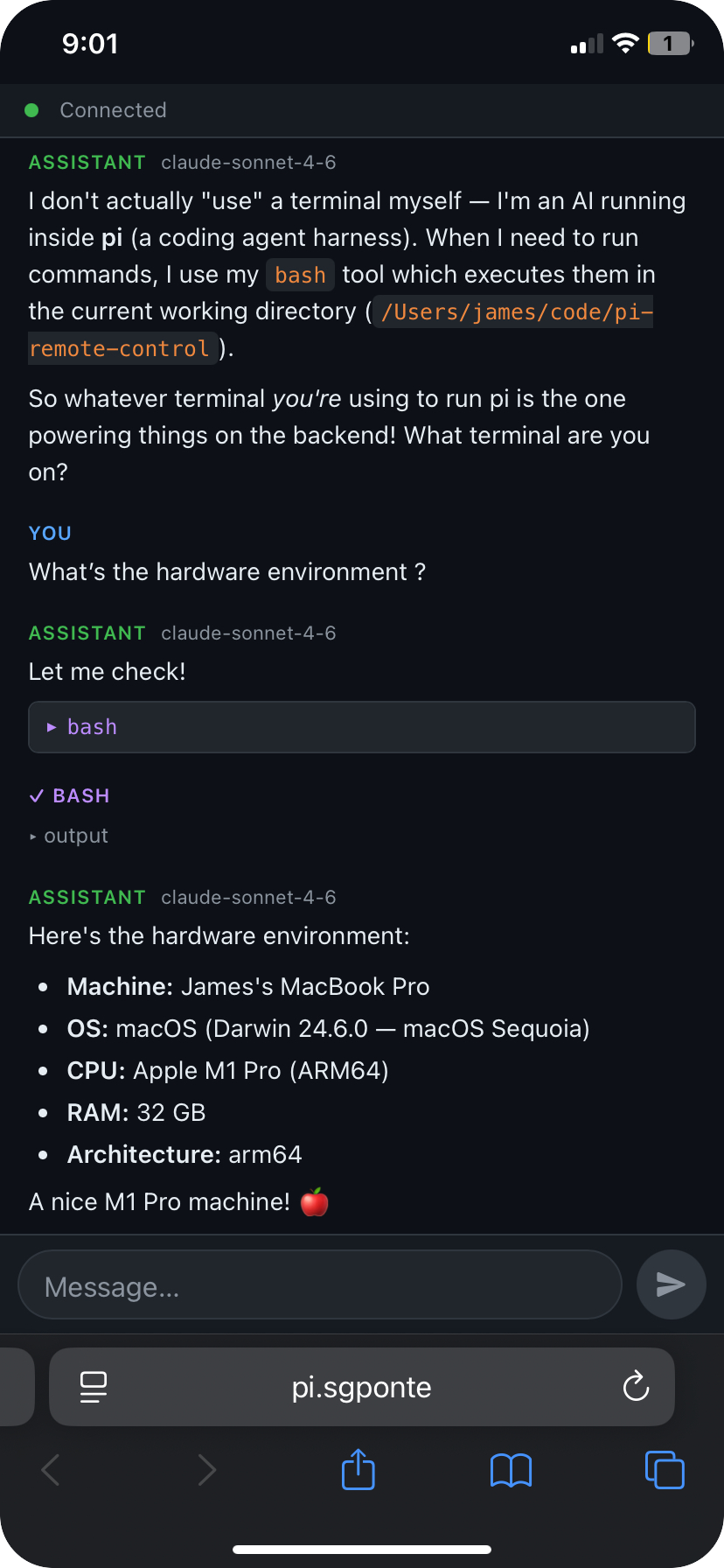

The extension ships a working HTML/WebSocket client that mirrors a pi session in any browser — including iPhone Safari.

Install

pi install git:git.vpsj.de/jay/pi-remote-control

Usage

Run /remote-control inside pi to open the menu:

• Turn on / Turn off — start or stop the server
• Configure URL — set the base URL for your tunnel or proxy
• Status — show the QR code and current session URL

To start the server automatically:

pi --remote-control

The server binds to 127.0.0.1 and is reached through a local tunnel (e.g. Surge Ponte, Tailscale). Open the QR URL in any browser.

---

In development: native iOS app

A native iOS app is being built on top of this extension's WebSocket infrastructure. Design goals:

• Byte-exact mirror of the terminal session — what you see over SSH is what you see on the phone, rendered via SwiftTerm.
• Session persistence — sessions run for days, the app reconnects instantly after backgrounding (< 1s, via sequence-cursor delta replay).
• Multi-session — spawn, name, and switch between pi sessions from the phone as easily as browser tabs.
• Pi-aware augmentation — modifier bar tuned for pi (Ctrl, Esc, Tab, arrows, Shift+Enter), slash-command palette, status bar showing what pi is currently doing, push notifications when pi is waiting for input.
• QR pairing — scan once, self-signed TLS + token pinned automatically.

Architecture (in progress)

pi (Ink TUI) ◄──► tmux session ◄──► SSH (Mac terminal)
                       │
                  tmux -C (control mode)
                       │
               pi-remote sidecar (this extension, extended)
                       │ wss:// (binary ANSI + JSON side-channel)
                       ▼
               iOS app (SwiftUI + SwiftTerm)

Streaming uses tmux control mode (tmux -C) rather than pipe-pane — verified reliable across alternate-screen transitions in a PoC spike.

Implementation docs

All planning and coordination lives in docs/:

File	Purpose
docs/NEXT-STEPS.md	Current state + what to do next
docs/PHASE-1-sidecar.md	Sidecar production-ready
docs/PHASE-2-ios-mvp.md	iOS app MVP
docs/PHASE-3-ios-augmentation.md	iOS polish features
docs/SYNC.md	Multi-agent coordination
docs/reference/SPEC-ios-app.md	Full feature spec (v3)

---

Running pi-remote as a sidecar (Phase 1)

All Phase 1 sidecar modules are implemented. See the full Operator Guide for details.

Quick start

# Start pi with the sidecar auto-enabled
pi -e extensions/remote-control --remote-control
# → Remote-control started: http://127.0.0.1:7777/?token=<TOKEN>

# Create a tmux session
curl -s "http://127.0.0.1:7777/sessions?token=<TOKEN>" \
  -X POST -H 'Content-Type: application/json' -d '{"name":"work"}'

# Stream output via wscat
npm install -g wscat
wscat -c "ws://127.0.0.1:7777/sessions/work/stream?token=<TOKEN>"
# → send: {"type":"resume","lastSeq":null}

# Send a keystroke
curl -s "http://127.0.0.1:7777/sessions/work/input?token=<TOKEN>" \
  -X POST -H 'Content-Type: application/json' -d '{"type":"keys","data":"ls"}'

# Pair the iOS app (generates QR code)
node extensions/remote-control/cli/index.js pair

What's implemented

Module	Files
Server scaffold	server/server.ts, server/upgrade.ts, server/types.ts
tmux control-mode	tmux/manager.ts, tmux/control.ts, tmux/input.ts, tmux/snapshot.ts
Disk ring-buffer	buffer/writer.ts, buffer/reader.ts, sequence.ts
Auth + pairing + TLS	auth/tokens.ts, auth/pairing.ts, auth/tls.ts
pi adapter	pi/events.ts, pi/commands.ts, pi/autoname.ts
REST routes	server/routes/{sessions,commands,health}.ts
WS routes	server/routes/{stream,side}.ts, server/upgrade.ts
APNs scaffold	apns/push.ts
CLI	cli/index.ts (pair, auth list/create/revoke/name)

---

Security notes

• The server only listens on localhost. Remote access depends on your tunnel.
• No multi-user authentication. The connection URL is a per-session secret.
• iOS app (in development) uses bearer tokens stored in the iOS Keychain, self-signed TLS with fingerprint pinning via QR pairing, and optional Face-ID gate — no CA or public PKI required.
• If using a reverse proxy, terminate TLS there and do not expose the dynamic backend port directly.
